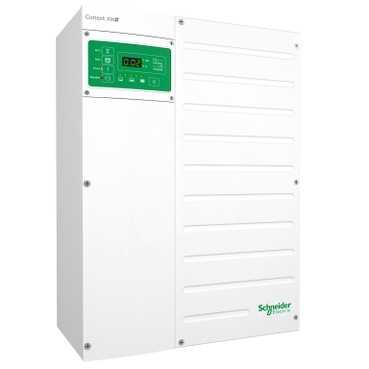

Schneider Electric Connext XW+ Inverter/Charger
Schneider Electric Conext XW+ (7048, 8548 Inverter/Charger 230VAC 50/60Hz – modified version of the Xantrex XW Inverter) is an adaptable single-phase and three-phase hybrid inverter with grid-tie functionality and dual AC power inputs. It has available solar charge controllers, monitoring, and automated generator control modules that enables further adaptability. From a single Conext XW+ unit to clusters of up to 102 kW, the Conext XW+ is a scalable system that allows for the integration of solar capacity as required. Adaptable and scalable, the Schneider Electric Conext XW+ system is the one solution for grid-interactive and off-grid, residential and commercial, solar and backup power applications
- FEATURES
- Single or three phase systems from 7.0 kW to 102 kW
- Excellent load starting with high 30-minute and 5-second power
- Improved battery management including support for Lithium-Ion technology
- Superior balance of system integration with battery bank, charge controller, and generators, further simplifies installation
- Supports DC coupled and AC coupled off-grid and grid-tie architectures
- Intelligent functionality enables solar prioritization, load shifting, peak shaving, and assists small generators with heavy loads
- Backup power with grid-tie functionality converts external DC power to AC power for export to the utility grid
- Monitor, troubleshoot or upgrade firmware with ConextComBox
- System configures quickly into compact wall-mounted system
- Integrates both grid and generator power with dual AC inputs
- Peak efficiency 95.8%
